Magnesite Bricks Magnesite Brick

Magnesite Bricks

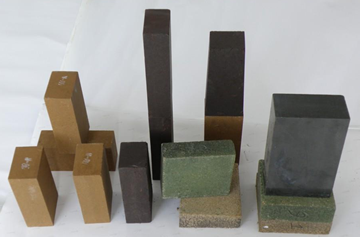

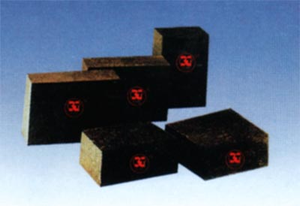

The Magnesite brick is one of the most widely used basic refractory bricks. Different grade magnesites used as raw materials produce Magnesia bricks of various qualities.

Choose KT Refractories because we help lower your cost and increase your profitability. We help our customers select the right refractory bricks from our high-quality selection of refractory products, therefore achieving a long service life. There are many types of Magnesia Bricks to withstand severe conditions in alternative fuel fired cement kilns.

Depending on your requests, process conditions and application, we select the optimal brick qualities for you - always considering refractoriness, chemical corrosion resistance, flexibility, thermal conductivity, and coating ability.

We are proud to offer a wide range of Magnesia bricks. Please let us know your application in details, and we will get back to your right away!

Please see below for materials, properties, and applications of KT Refractories Magnesite Bricks, Magnesite Brick, Burned Magnesite brick, Fused Magnesite brick, Magnesite Alumina brick, Magnesite-Alumina Spinel brick, Magnesia-Chrome brick, Direct-Bonded Magnesite Chrome brick, Rebonded Magnesite-Chrome brick, Semi-Rebonded Magnesite-chrome brick, Magnesite Dolomite Brick, Magnesia-carbon bricks, MAGNESIA-SPINEL bricks. Specifications and data sheets are available upon request.

Call 1-877-365-2995 to order Magnesite Bricks, Burned Magnesite brick, Fused Magnesite brick, Magnesite Alumina brick, Magnesite-Alumina Spinel brick, Magnesia-Chrome brick, Direct-Bonded Magnesite Chrome brick, Rebonded Magnesite-Chrome brick, Semi-Rebonded Magnesite-chrome brick, Magnesite Dolomite Brick, Magnesia-carbon bricks, MAGNESIA-SPINEL bricks. Our fast, responsive customer service and reliable delivery service will save you time and money!

Magnesite Bricks

There are two types of Magnesite bricks:

Burned Magnesite Brick

  • Material and Technique: magnesia as raw material
  • Property: good high-temperature performance, strong slag resistance
  • Application: used in permanent linings of EAF and steel Convertors, lime kilns, glass tank regenerators, torpedo cars, and non-ferrous furnaces

    • Fused Magnesite Brick

  • Material and Technique: fused magnesia, shaped under high pressure, fired under ultra high temperature, and finished with post technical treatment
  • Property: high bulk density, good high-temperature performance, and strong hydration resistance
  • Application: used in the tapping hole of convertors with severe slag corrosion and wear, the slag line of non-ferrous furnaces, the tapping hole of metal mixer furnaces, and chimney block of glass tank regenerator

    • Magnesite Alumina Brick

    There are two types of Magnesite Alumina Bricks:

    Magnesite Alumina Brick

  • Material and Technique: made from high quality magnesia and alumina bauxite with phases of periclase and spinel
  • Property: good high-temperature performance, high thermal shock resistance, strong slag resistance, and high RUL performance
  • Application: used in steel ladle, permanent lining of steel furnace, iron mixer and other refractory material industry furnaces

    • Magnesite-Alumina Spinel brick

    Magnesite-Alumina Spinel Brick is our newly developed environmental friendly product with high quality performance for the cement kiln and glass kiln markets. It has won huge success in both domestic and oversea markets.
  • Material and Technique: made from high purity magnesia and synthetic magnesite-alumina spinel clinker with major phases of periclase and spinel
  • Property: good high temperature performance, high thermal resistance, strong slag resistance
  • Application: used in the transition zone in cement rotary kilns, glass tank regenerators, lime kiln and the refractory material zones where experiences great temperature change

    • Magnesite Chrome Brick

    Magnesite Chrome Bricks is one of the major refractory products. There are three types:

    Ordinary Magnesite Chrome Brick

  • Material and Technique: made from sintered magnesia and chrome ore, and sintered at high temperature
  • Property: higher bulk density and stronger thermal resistance than the magnesite brick
  • Application: used in cement rotary kilns, glass kiln regenerators, permanent lining of steel furnace, and permanent lining of refining ladle.

    Direct-Bonded Magnesite Chrome Brick

  • Material and Technique: made of low impurity chrome ore and high purity magnesia, and fired at high temperature over 1700
  • Property: strong slag resistance and good performance under high temperature
  • Application: cement rotary kilns, electric arc furnaces, and non-ferrous metal furnaces

    Rebonded Magnesite-Chrome Brick and Semi-Rebonded Magnesite-Chrome Brick

  • Material and Technique: made with synthetic fused magnesia, shaped under high pressure, and fired at ultra high temperature
  • Property: high temperature performance, high thermal resistance, low air-permeability, and strong slag resistance
  • Application: used in tapping hole of AOD furnace, the lower vessel of vacuum chamber and snorkel of RH furnace, and the slag line of high temperature furnaces

    The Semi-Reboned Magnesia-Chrome Brick is made from Fused Magnesia-Chrome melting grain, high purity fused and burned magnesia sands, and chrome ore through ultra high temperature. It has both the excellent thermal shock resistance of the direct bonded brick and the good corrosion resistance of the Fused Rebonded Magnesia-Chrome Bricks.

    The Semi-Reboned Magnesia-Chrome Brick is a rebonded product made from the fused grain of the fused magnesia-chrome.

    Magnesite Dolomite Brick

    We proudly represent Magnesite Dolomite Brick - our Magnesite Dolomite Brick is the most advanced level in the refractory industry in China, and we have become the major supplier world wide.

    Magnesite Dolomite Brick

  • Material and Technique: Magnesite Dolomite brick is made from high purity and density magnesia and sintered magnesia dolomite clinker with major components of periclase and lime. The brick is shaped under high pressure and fired with high temperature, with appropriate MgO/CaO ratio raw materials to meet with the requirement of various applications.
  • Properties: Magnesite Dolomite brick offers good thermal resistance and anti-spalling performance. When used in cement rotary kilns, these bricks provide good coating protection to the kilns.
  • Application: Magnesite Dolomite brick is applied mainly in refining furnaces such as AOD, VOD, and ladles. Also applied in the burning zone of cement refractory kiln as an alternative to magnesite chrome brick.

    • Magnesite Bricks Applications

    Iron and Steel Industry

  • Converter
    - Permernant lining: Burned Magnesite Brick
    - Working lining: Magnesite Carbon Brick
    - We can provide full set converter lining and its design.
  • Electric arc furnace
    - Permernant lining: Burned Magnesite Brick
    - Working lining: Magnesite-Carbon Brick
    - We can provide full set converter lining and its design.
  • Steel Ladle
    - Working lining: Magnesite-Carbon Brick, Alumina-Magnesite-Carbon Brick
    - We can provide full set ladle lining and its layout.
  • RH degasser
    - Working lining: Fused Rebonded Magnesite-Chrome Brick, Fused Semi-Rebonded Magnesite-Chrome Brick, Fused Directed-Bonded Chrome Brick
    - We can provide full set RH dipping tube.
  • AOD furnace
    - Permanent lining: Burned Magnesite Brick
    - Working lining: Magnesite-Calcium Brick/Magnesite Dolomite Brick
    - We can provide full set AOD Magnesite-Calcium Brick/Magnesite Dolomite Brick lining.
  • VOD furnace
    - Working lining: Magnesite-Calcium Brick/Magnesite Dolomite Brick, Fused Rebonded Magnesite-Chrome Brick, Semi-Rebonded Magnesite-Chrome Brick, Directed-Bonded Chrome Brick, Magnesite-Carbon Brick
    - We can provide full set VOD furnace Magnesite-Calcium Brick/Magnesite Dolomite Brick lining.
  • Metal Mixer
    - Working lining: Magnesite brick, Magnesite-Alumina brick, Magnesite Chrome brick
  • Lime kiln
    - Working lining: Magnesite brick, Magnesite-Alumina Spinel brick, Magnesite Zirconia brick, Magnesite Chrome brick

    • Non-ferrous metal Industry

  • Working lining of the melting furnace
    Magnesia brick, Magnesia Alumina brick, Magnesia Chrome brick
  • Working lining of converting furnace
    Magnesia brick, Magnesia Alumina brick, Magnesia Chrome brick

    • Technical Data Chart for Semi-Reboned Magnesia-Chrome Bricks, Fused Rebonded Magnesia-Chrome Bricks

    Other Magnesite Bricks' Technical Data Sheet are available upon request.

    Properties

    Magnesite Bricks

    		 MgO % ≥ Cr2O3 % ≥ SiO2 % ≤ Apparent porosity (%) ≤ Cold Crushing Strength (MPa) ≥ 0.2 MPa Refractoriness Under Load °C ≥ Thermal expansion % 1200°C Thermal conductivity
    (W/mK)
    1000°C     		Thermal conductivity (W/mK)
    1000 °C ≥
    BRMGe-16A 67 16 1.5 16 40 1700 1.0 3
    BRMGe-16B 66 16 2 16 40 1700 1.0
    BRMGe-18A 63 18 1.5 16 40 1700 0.9 2.6
    BRMGe-16B 62 18 2 16 40 1700 0.9
    BRMGe-20A 60 20 1.5 16 40 1700 0.9
    BRMGe-20B 58 20 2.5 16 40 1700 0.9 4
    BRMGe-22 55 22 2.5 16 40 1700
    BRMGe-26 48 26 2.5 16 40 1700 2.2
    BRMGe-22AA 65 20 1.5 15 40 1700 0.9 4
    FRMGz-12 72 12 1.5 15 40 1700 1.1
    FRMGz-14 70 14 2.5 15 40 1700 1.1 2.7
    FRMGz-16 67 16 1.5 15 40 1700 1.0
    FRMGz-18 62 18 2 16 40 1700 0.9 2.6
    FRMGz-20 60 20 2 16 45 1700 0.9
    FRMGz-26 48 26 2.5 17 45 1700 0.9 2.4
