Ceramic Fiber Module

Ceramic Fiber Module

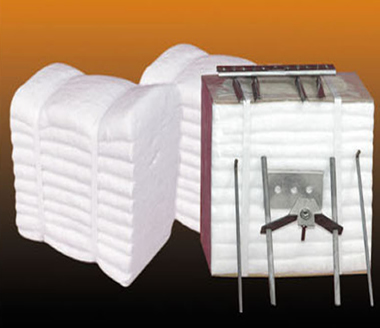

Ceramic fiber module has excellent refractory, energy saving and insulating effects, and low heat storage. Ceramic fiber module can be directly fixed on the shell of the industrial furnace; installation is fast and easy. Ceramic fiber module improves the refractory and insulating integrity of furnaces and improves furnace construction process. KT Refractories has 2300F, 2600F, and different sizes of ceramic fiber module in stock. Our ceramic fiber modules are made from high-quality spun fiber blanket, then folded and compressed to certain dimensions.

Call KT Refractories at 1-877-365-2995 to order Ceramic Fiber Module today!

Size Chart for Ceramic Fiber Module

Classification Temperature
Theoretical Density
Ceramic Fiber Module
2300°F (1260°C)
Ceramic Fiber Module
2600°F (1427°C)
In Stock Sizes

12 x 12 x 6 in
12 x 12 x 8 in
12 x 12 x 10 in

12 x 12 x 6 in
12 x 12 x 8 in
12 x 12 x 10 in
12 x 12 x 12 in

Theoretical Density 12.5 - 13.7 (lb/ft³)
200 - 220 (kg/m³)
12.5 - 13.7 (lb/ft³)
200 - 220 (kg/m³)
Shrinkage on heating (%) 1000°C X 24H <= -3 1350°C X 24H <= -3

Ceramic Fiber Module Data Sheet Chart:

Description

STD Module

HP Module

HZ Module

Chemical Composition (%)

Al2O3

≥44

≥45

≥34

SiO2

≥52

≥54

≥50

Fe2O3+TiO2

≤1.0

≤0.5

≤0.5

ZrO2

-

-

≥15

K2O+Na2O+Fe2O3

≤1.0

≤0.2

≤0.2

Physical Properties

Density (kg/m³) avg

220

220

220

Classification Temperature (°C)

1260

1260

1430

Liner Shrinkage after Heating (%)

1000°Cx24h≤2.5

1100°Cx24h≤2.5

1350°Cx24h≤3.5

Thermal Conductivity (W/mK)

400°C

0.090

0.101

0.118

500°C

0.119

0.120

0.149

600°C

0.152

0.175

0.172


Excellent Features

  • Modules combine the insulating advantages and excellert features of ceramic fiber
  • Excellent thermal shock resistance
  • Low heat storage capacity
  • Rapid and easy installation
  • Provide durable service and lifespan
  • Lightweight
  • Typical Applications:

    Ceramic fiber module for ceramic industry
  • Low mass kiln cars
  • Continuous and batch kilns
  • Door linings
  • Glazing, porcelain furnace linings
  • Ceramic fiber module for power generation
  • Duct lining
  • Heat recovery
  • Steam system
  • Boiler insulation
  • Stack linings
  • Ceramic fiber module for steel industry
  • Ladle pre-heaters and covers
  • Heat treat furnace
  • Soaking pit covers and seals
  • Heaters and reformer lining
  • Ceramic fiber module for other applications
  • Incineration equipment
  • Burner blocks
  • Induction furnace covers
  • Glass tempering furnace
